Chiller System

Chillers are a key component of air conditioning systems for large buildings. They produce cold water to remove heat from the air in the building. They also provide cooling for process loads such as file-server rooms and large medical imaging equipment. As with other types of air conditioning systems, most chillers extract heat from water by mechanically compressing a refrigerant. Chillers transfer heat away from a space that requires climate control much like a traditional split system or package unit does, but they use water (or a water solution) to do so instead of air. There are two types of chillers: water-cooled and air-cooled. They work similarly throughout most of the process until the refrigerant reaches the condenser.

Chillers are complex machines that are expensive to purchase and operate. Our preventive and predictive maintenance program is the best protection for this valuable asset. Maintaining them well and operating them smartly can yield significant energy savings.

layout styles

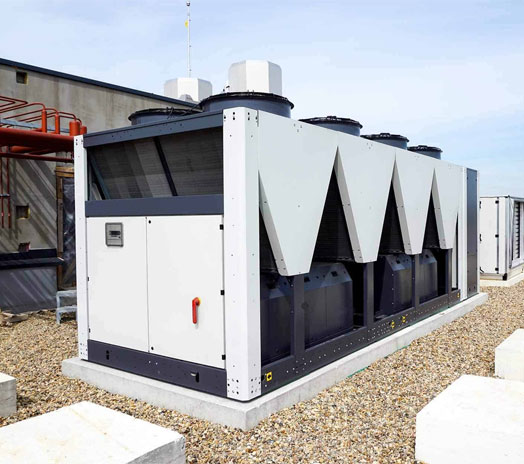

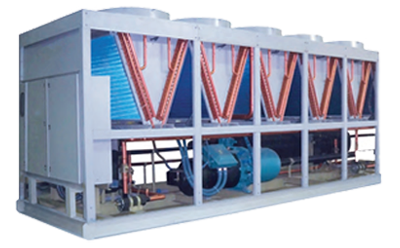

Air Cooled Chiller

Air Cooled Chiller is a type of system that sends wind to the heat exchanger and cools the refrigerant with air. There is a built-in fan motor inside the chiller, and it is easy to install, but because exhaust heat is generated in the room, exhaust equipment may be required in tight spaces. The gas compressed with the freezer (compressor) is cooled by a condenser (radiator) and liquefied. It is comprised of a refrigerant gas cycle and a circulating water cycle, and refrigerant gas is used as a heat medium to cool the circulating water.

By passing liquefied gas through the expansion valve, the pressure is reduced, and it becomes a cooling gas, and a water cooler (heat exchanger) exchanges heat with the circulating water to cool the circulating water. Because there is no freezing or clogging, aquarium cleaning maintenance is easy. Also, in the case of the air-cooled chiller, the heat of vaporization due to the evaporation of rainwater lowers the temperature of the radiator when rainwater comes into contact with the cooling tower when it rains, and because the temperature drops due to the evaporation of rainwater around the air-cooled chiller, the cooling efficiency can be maintained regardless of the rise in humidity, such that the cooling efficiency improves even if the humidity is high.

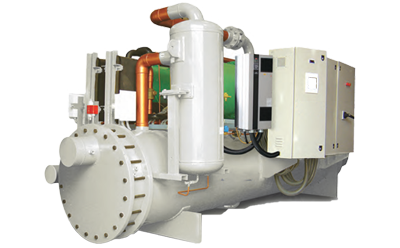

Water Cooled Chiller

Water Cooled Chiller is a type of system that uses a cooling tower to cool water. Cooling water for the refrigerator is required, but it offers advantages such as excellent cooling efficiency and does not generate exhaust heat in the room. A water-cooled chiller that uses water, which is active in the field of large-scale air conditioning, as a refrigerant, is referred to as a natural chiller (absorption chiller) and is adopted as a heat source refrigerator for central air conditioning of air conditioning equipment for medium and large-scale buildings. The system configuration is comprised of an evaporator, absorber, regenerator and condenser, and produces chilled water (hot water) with pressure control by circulating the refrigerant sealed in the equipment (cooling water circulation device).

It is a cooling cycle, but by changing the pressure of the refrigerant in the equipment, chilled water (hot water) is produced by changing its composition to gas and liquid (latent heat transfer) inside an airplane. It can be stably operated throughout the year, and a compact design is possible so that it can be installed in small spaces.

style switcher
Project Image

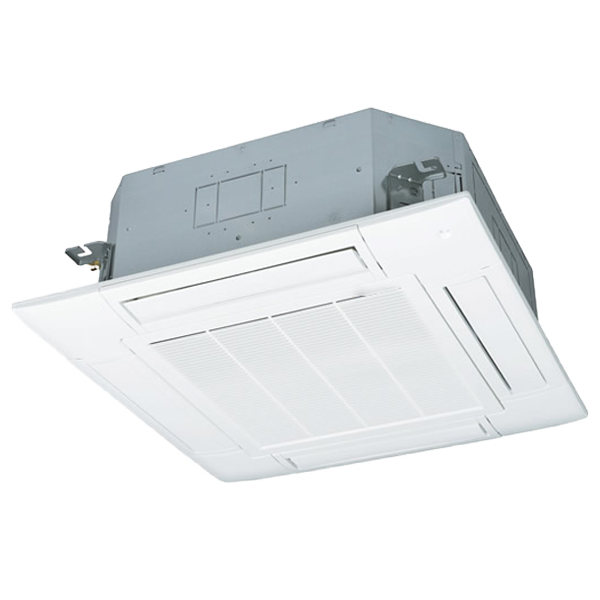

Ceiling Cassette
Project Image

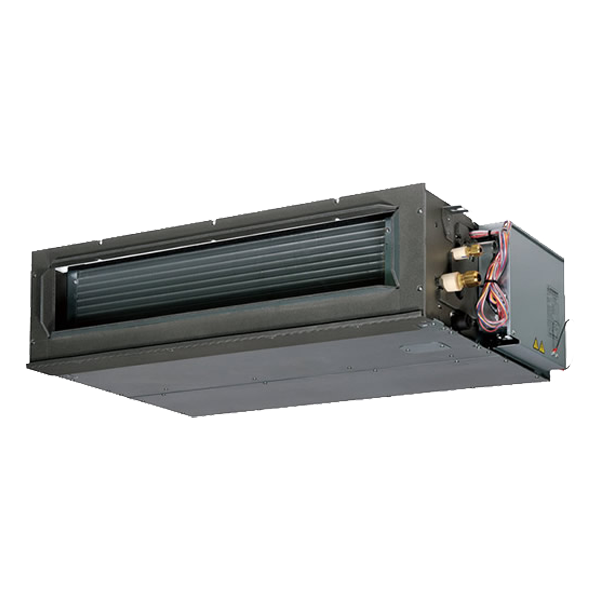

Ducted
Project Image

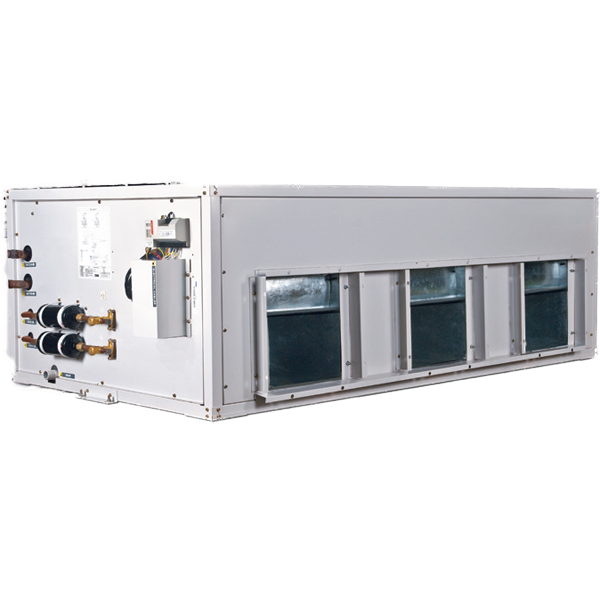

Fan Coil Unit
Project Image

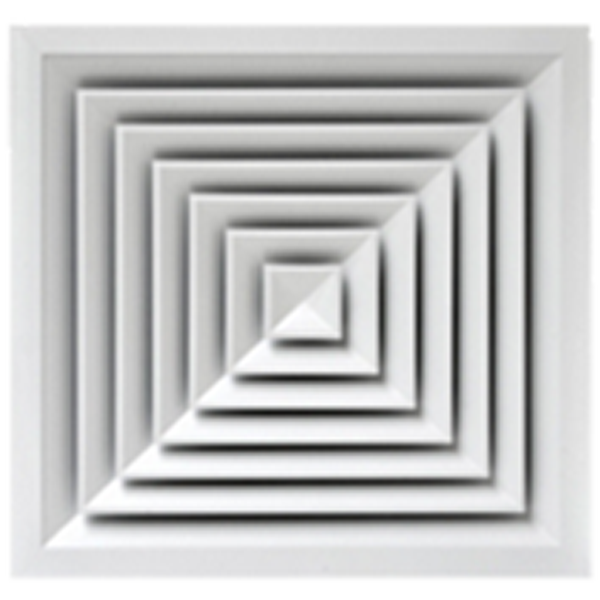

Resistant Ceiling Diffuser
Project Image

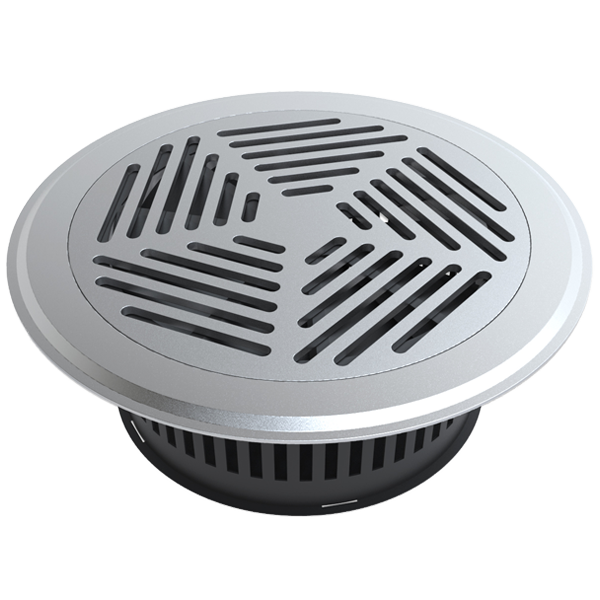

Modular Floor Diffuser
Project Image

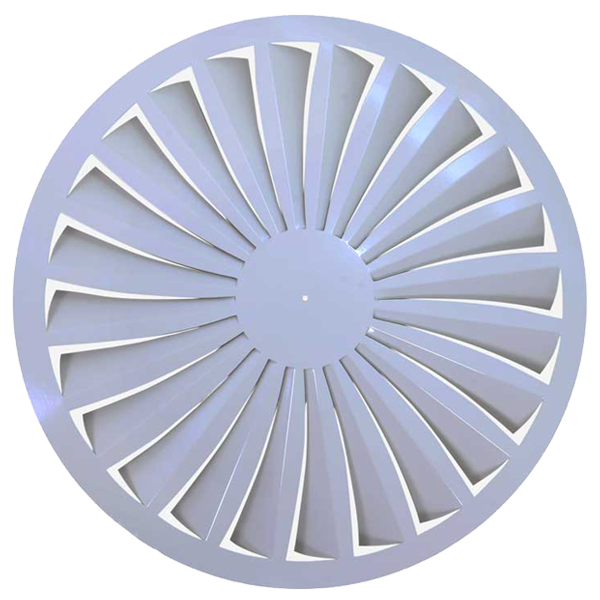

Swirl Diffuser
